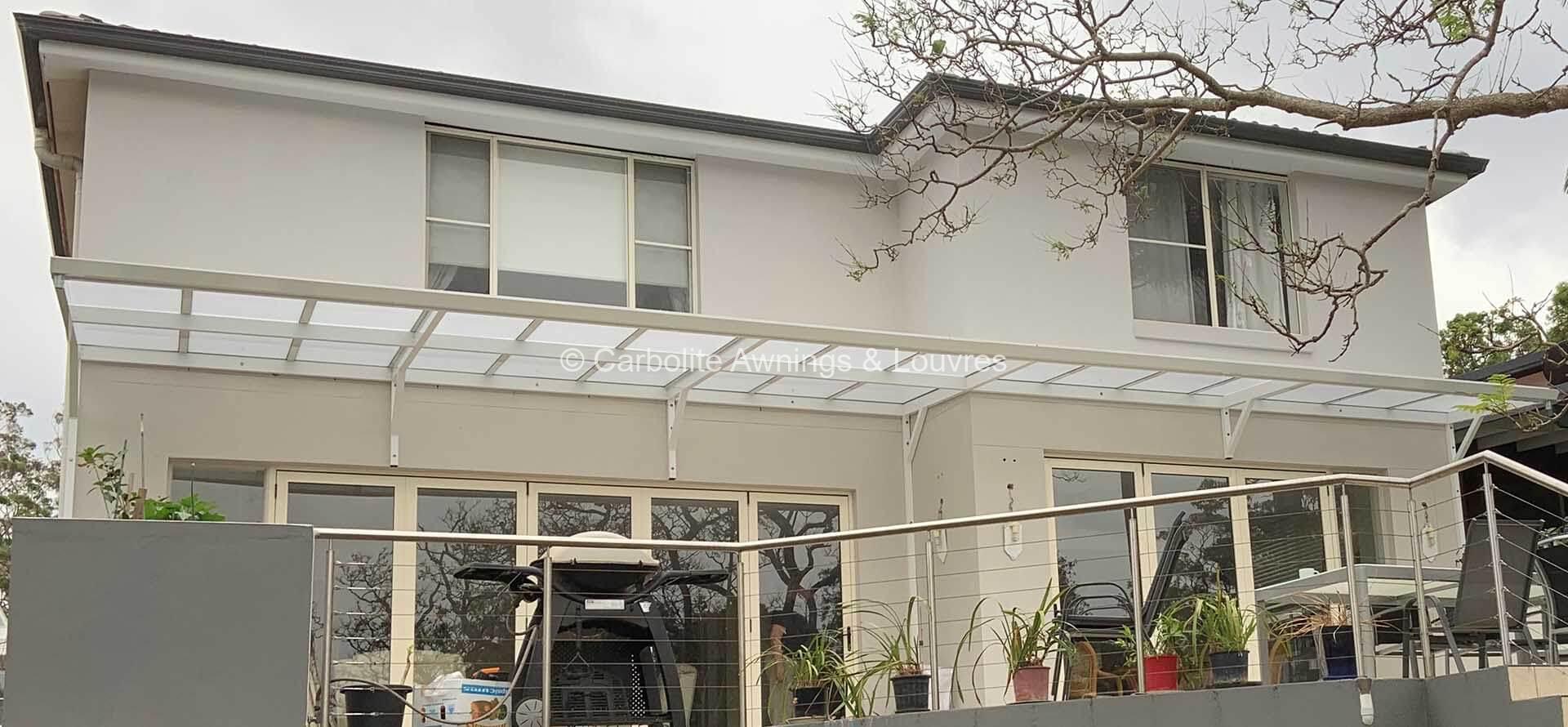

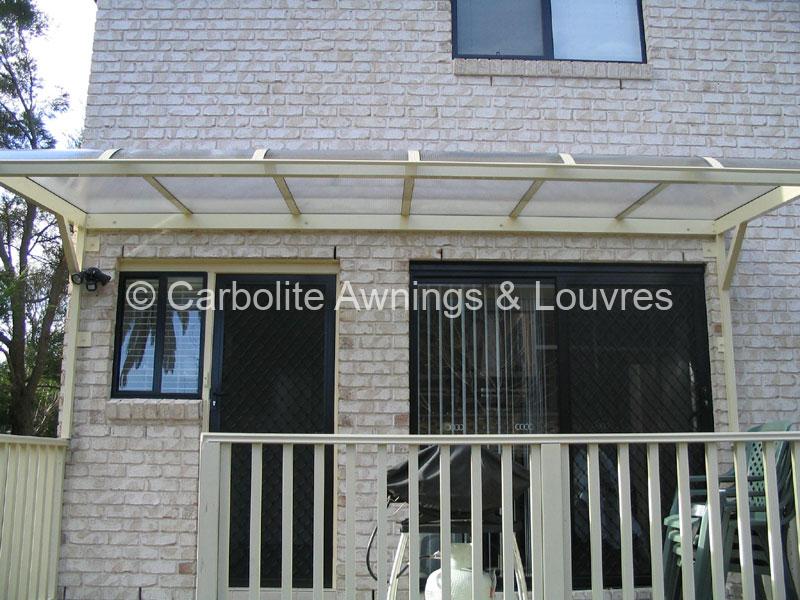

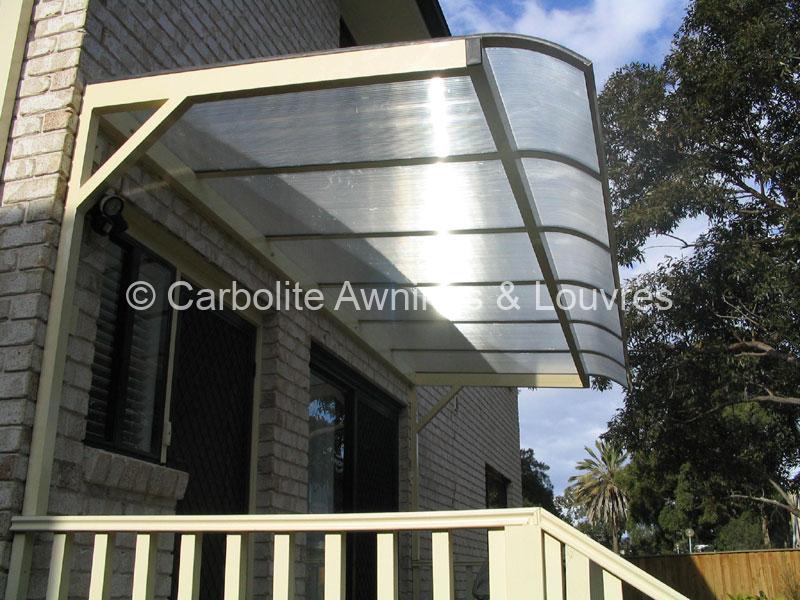

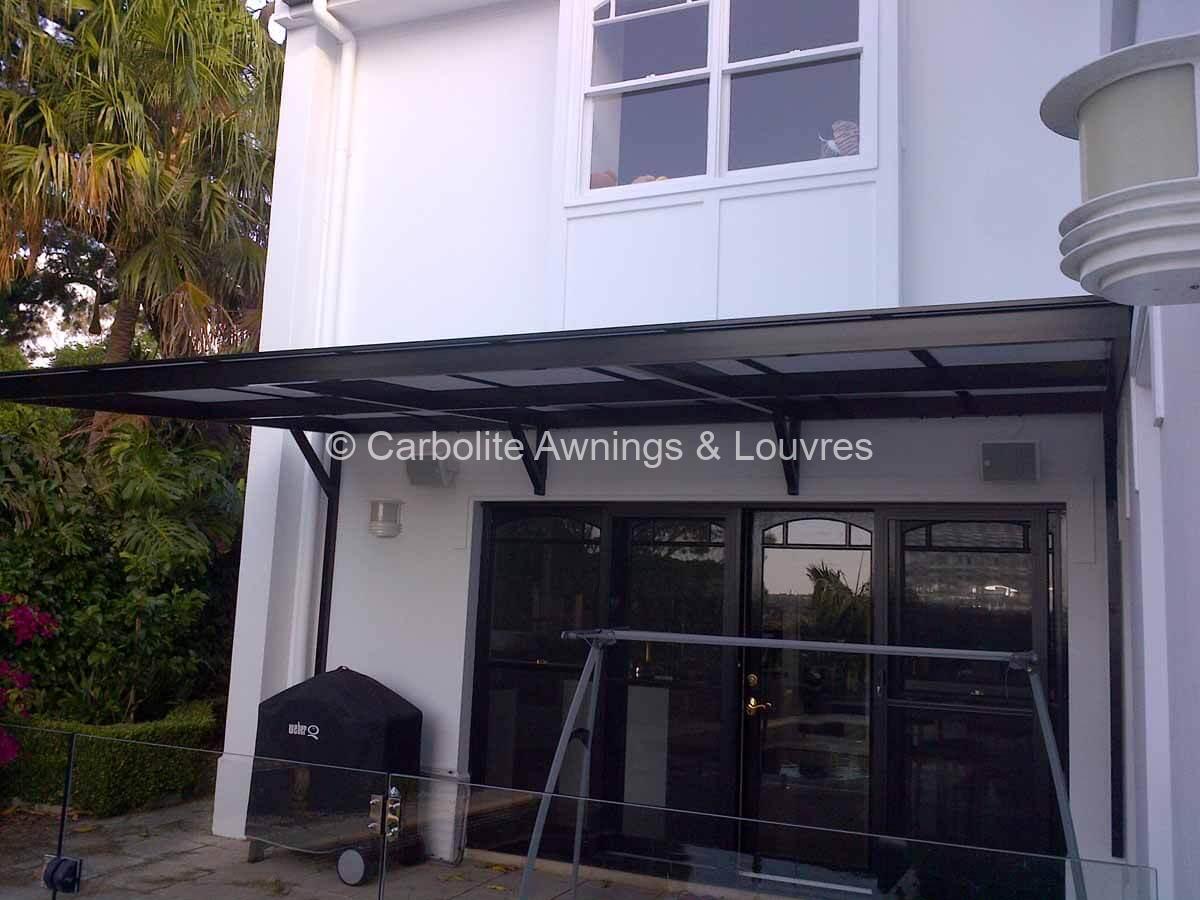

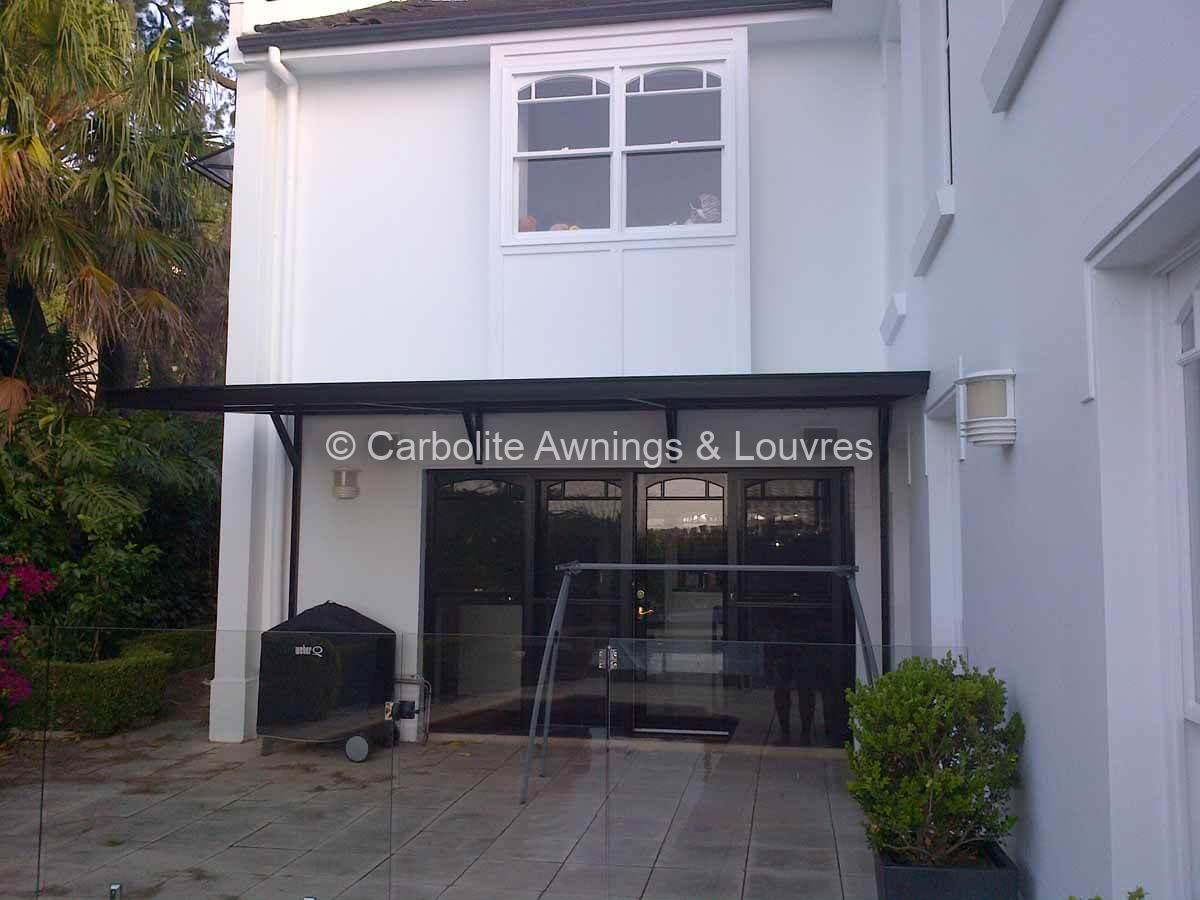

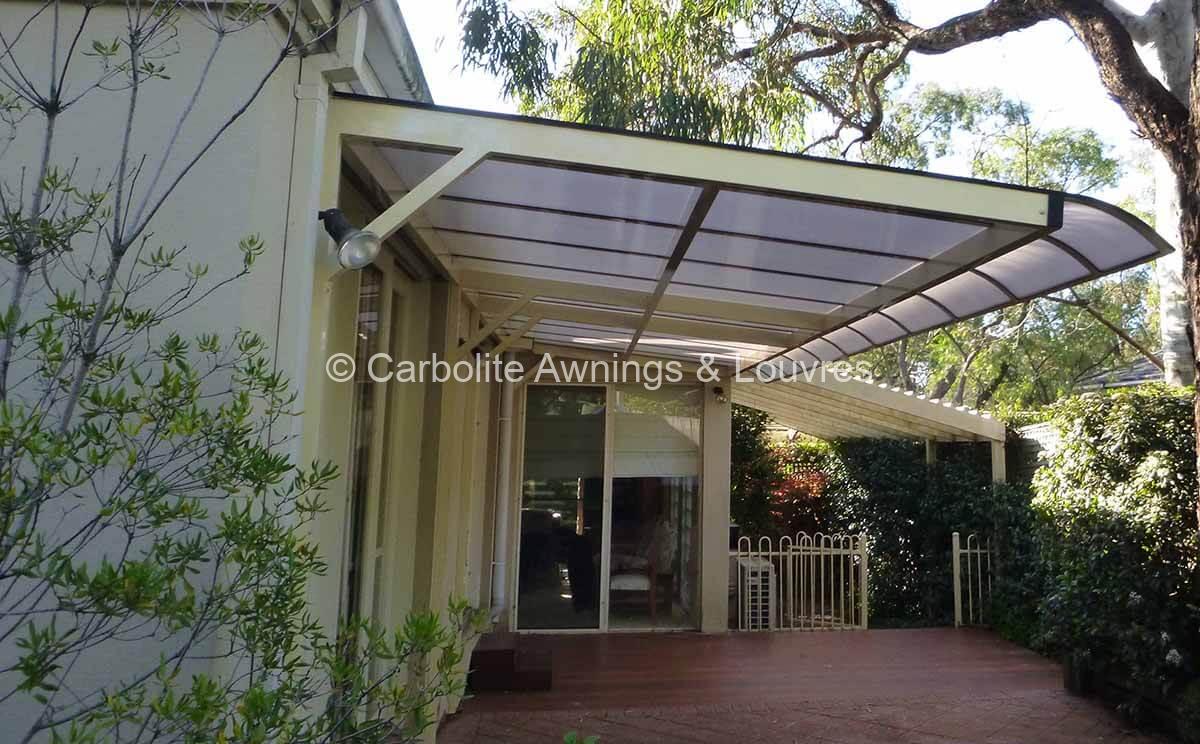

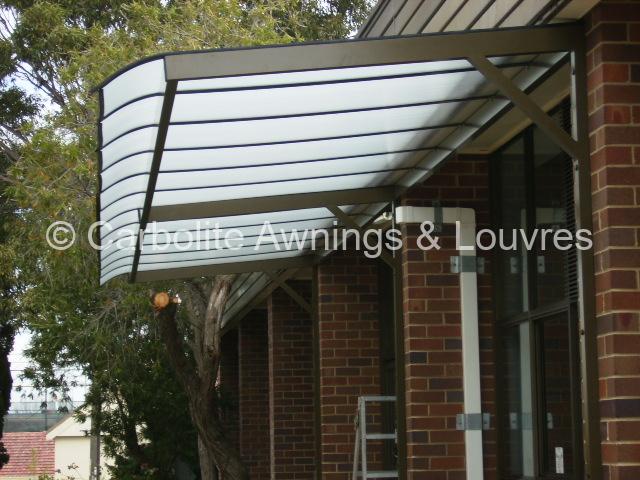

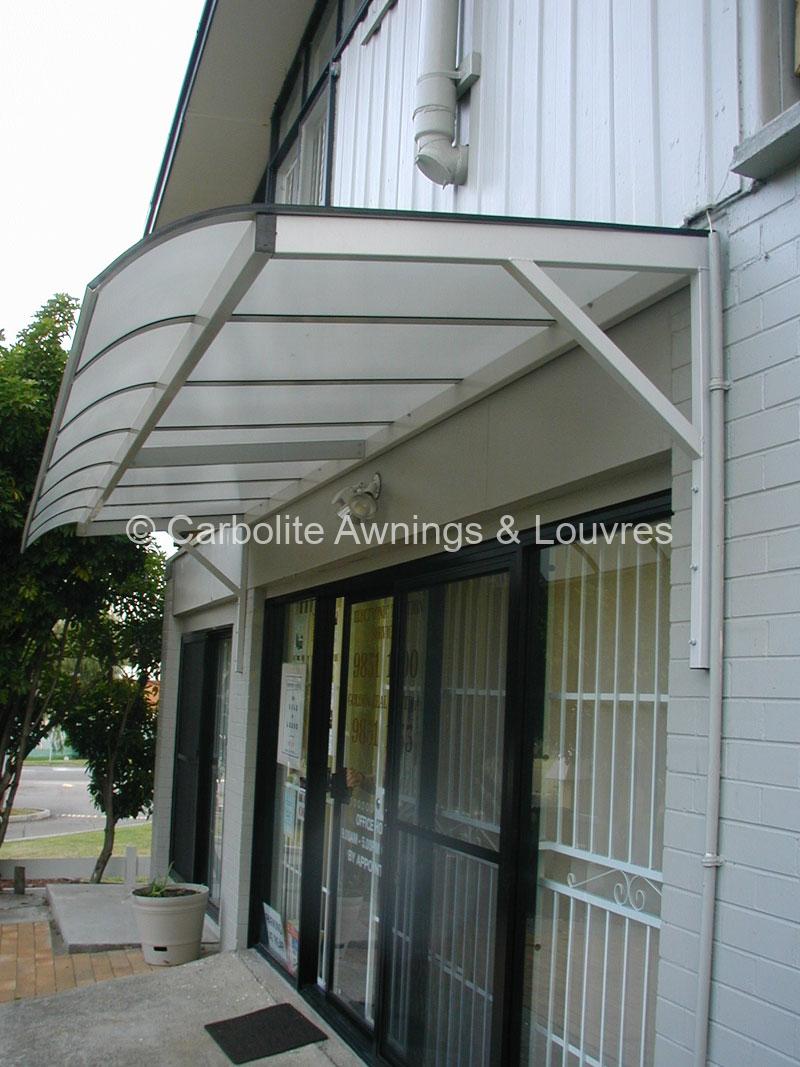

Cantilevered Awnings are designed for spanned awnings not having the need for front posts. The awning consists of a large welded post bracket. The post has the arm and support arm welded to it allowing the strength needed for a cantilever of up to 2600mm from the wall.

The vertical post leg (50mm x 2.5mm thick) is dynabolted to the brick work (or coach screwed to timber). The brackets are spaced around 3m apart. Once the brackets are in place, the cross beams are attached and then the roof sheets added.

The awnings use only aluminium material, which reduces the incidence of oxidisation and rust. All aluminium supplied is powdercoated making the finished product low maintenance.

The projections start from 1800, 2000, 2200, 2400 ,2600.

For more information, please view the Installation Guides located under the Tech Info Section for this product.
